Fiber Optic Chandeliers & Features

Chandeliers and visual effects of any size and scope for horizontal and vertical surfaces and volumes. The range boasts all the components for the production of center-pieces, chandeliers, curtains, backdrops and decorative features with no limitations beyond the project design constraints.

Fiber Optic  Light Guides

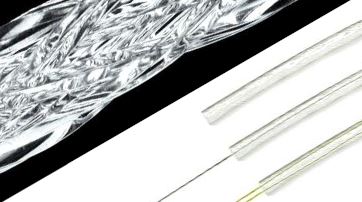

SSF - Sparkle

Sparkle light guides or fibers are the light conductors of choice for medium sized features up to 30m. A single MDI illuminator can power from 80 to 1,000 light guides and fibers, depending on size

CODE  | DIAMETER  |   STRUCTURE
SSF103 Ø6,00mm 12 x 0,75mm
SSF101 Ø4,50mm 7 x 0,75mm
SSF102 Ø3,00mm 4 x 0,75mm
SSF201 Ø2,00mm 1 x 1,00mm
SSF222 Ø0,75mm 1 x 0,75mm
SSF221 Ø1,00mm 1 x 1,00mm


Braided light guides for very large features and drops of up to 30m. A single MDI illuminator can power 60 of these light guides

Braided light guides for very large features and drops of up to 30m. A single MDI illuminator can power 60 of these light guides

LGT100  - This termination causes the fibers to hang without a curve on its end. Finished with an end lens or cap

LGT100 - This termination causes the fibers to hang without a curve on its end. Finished with an end lens or cap

LGT200  - This termination the light guide lower end can be shaped at will for decorative forms and patterns. Finished with an end lens or cap

LGT200 - This termination the light guide lower end can be shaped at will for decorative forms and patterns. Finished with an end lens or cap

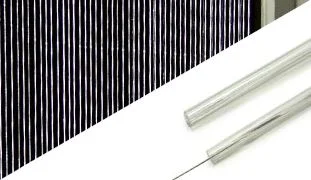

HSG Straight

Straight (unbraided) light guides or fibers, for very long drops of up to 100m with reduced diameters. A single MDI illuminator can power from 70 to 600 of these light guides or fibers, depending on size.

CODE  | DIAMETER  |   STRUCTURE                                                               HSG301 5mm 14 x 0,75mm
HSG401 5mm 12 x 0,75mm
HSG501 4mm 7 x 0,75mm
HSG601 3mm 5 x 0,75mm
PSF101  2mm 1 x 1,00mm


LGT300  - This termination provides a rigid and solid element at the end of each light guide to attach crystals and other decorative elements. No end lens finish

LGT300 - This termination provides a rigid and solid element at the end of each light guide to attach crystals and other decorative elements. No end lens finish

LGT400  - This termination with a choice of organic lenses causes a sharp point of light on each single end while sealing the light guide.

LGT400 - This termination with a choice of organic lenses causes a sharp point of light on each single end while sealing the light guide.

LGT500  - Crystal clear caps fused on the end of light guides to seal light guides and prevent the ingress of foreign matter and dirt.

LGT500 - Crystal clear caps fused on the end of light guides to seal light guides and prevent the ingress of foreign matter and dirt.



Light guide end terminations for an ample range of finishes. Suitable for bare, straight or curved ends. Also terminations to attach decorative elements, such as crystals, glass or metal pieces or weights for chandeliers, curtains, center pieces, custom and large size light fixtures and backdrops.


We supply a complete range of components for fiber optic chandeliers or for any configuration of custom fixture with fiber optics.


Need more information? Please contact us.
